Model No :

LED-Strip-AC

Lamp Source :

Epistar

Every Meter :

4.8W / 8W / 10W / 15W

Color Temp. :

2400K / 2700K / 3000K / 3500K

4000K / 5500K / 6000K

Color Temperature +/- 100K

Voltage :

200-240V AC Input

RA :

82/90

Max Roll :

100 Meter

IP :

IP 67 Protection

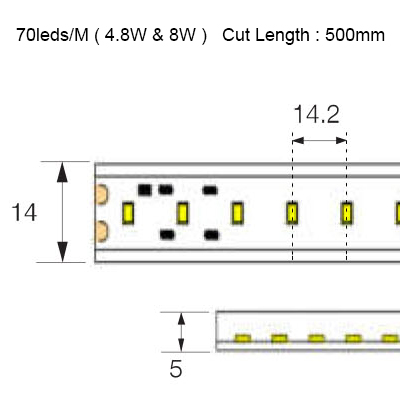

4.8W & 8W Cut Line

Every Meter :

4.8W / 8W ( 125 lm/W/M )

70leds/M

14.2mm pitch

Size :

W14mm x H5mm

Cut Line :

In Every 500mm

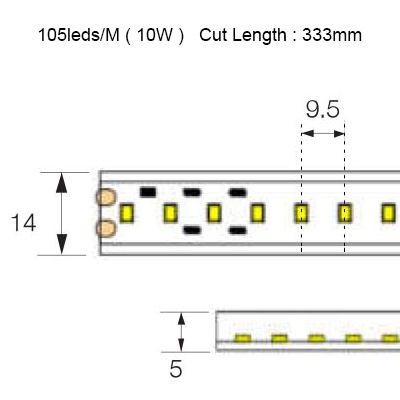

10W Cut Line

Every Meter :

10W ( 125 lm/W/M )

105leds/M

9.5mm pitch

Size :

W14mm x H5mm

Cut Line :

In Every 333mm

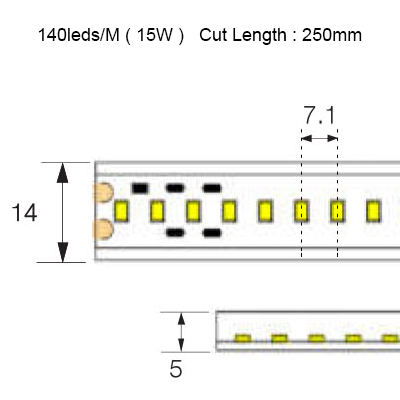

15W Cut Line

Every Meter :

15W ( 125 lm/W/M )

140leds/M

7.1mm pitch

Size :

W14mm x H5mm

Cut Line :

In Every 250mm
